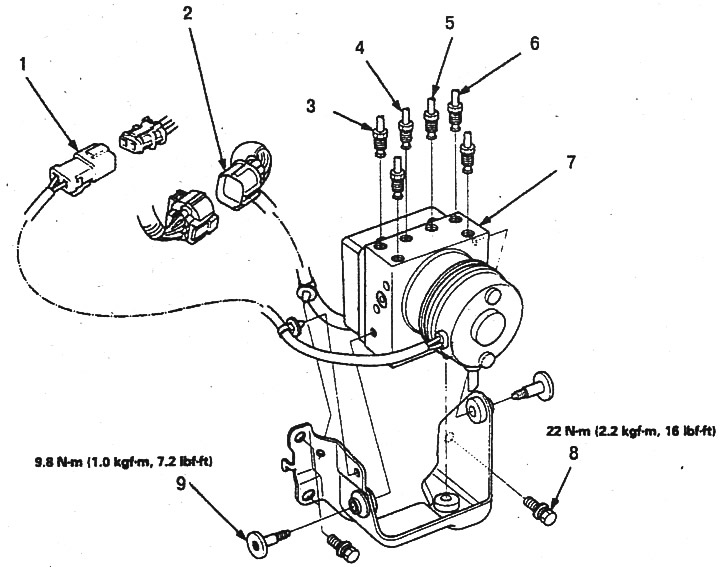

Valve Block (CR-V): 1. Electric pump connector; 2. Valve block connector; 3. Brake pipe nipple from the front right wheel; 4. Brake pipe nipple from the rear left wheel; 5. Brake pipe nipple from the rear right wheel; 6. Brake pipe nipple from the front left wheel; 7. Valve block; 8. Bolt
1. Disconnect the battery from ground.
2. Loosen the bolts, disconnect the connector and tubes from the valve block.

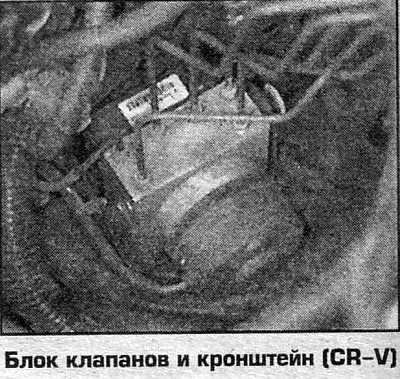

3. Remove the block.
4. Installation is carried out in reverse order. When finished, remove air from the brake hydraulic system in the following sequence: left front wheel - right front - right rear - left rear.
5. If necessary, delete the codes from the control unit memory by contacting a car service center.
