Removal and installation the lower dashboard panel on the driver's side (Honda CR-V 2)

Note:

• Avoid scratching the instrument panel and adjacent components.

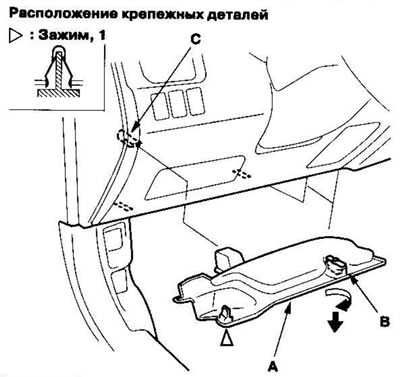

• The picture shows a left-hand drive model; the arrangement on the right-hand drive model is symmetrical

.

1. Remove the driver's side lower instrument panel cover (A).

• Turn the locking lever (B) 90°.
• Gently pull back the bottom edge and release the clamp.
• Pull the shield and separate it from the clamp (C).

2. The shield is installed in the reverse order of removal.
