Mirror assembly
1. Disconnect the battery from ground.
2. Lower the door glass and release the triangular mirror cover from the latches by hand.
3. Disconnect the connector.
4. Loosen the mounting bolts and remove the mirror.
5. Installation is carried out in reverse order.
Optical element of a mirror

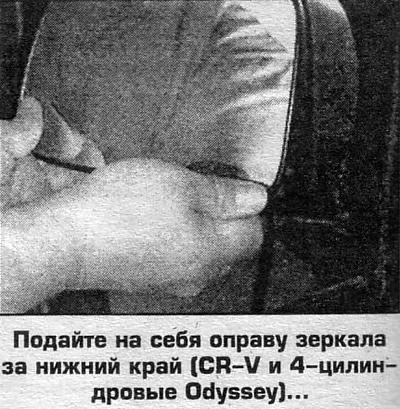

1. Pull the mirror frame past the bottom edge by hand.

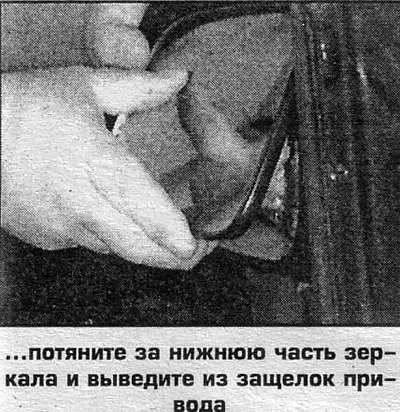

2. Gently pull the bottom edge of the mirror until the optical element comes out of the drive latches
3. If the hooks are stuck on the mirror holder, then move them to the drive.

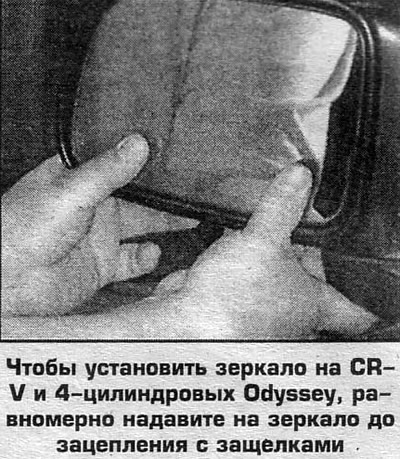

4. Align the latches and hook engagement points and, pressing evenly on the mirror, push the holder into the drive base. Check the operation of the mirror drive.
