Checking the front wheel alignment (Honda CR-V 2)

1. Set the front wheels to the straight-ahead position.

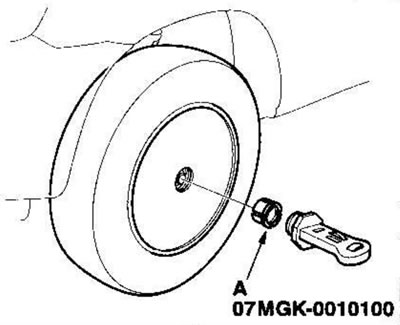

2. Remove the wheel cover and install the wheel angle tester (A) and the camber angle meter for the front wheels and the longitudinal tilt angle of the steering axis on the wheel hub.

3. Read the camber reading on the device by moving the bubble to the center of the device. If the angle is different from the norm, adjust the camber of the front wheels.

Front camber angle: 0°00'±45'
