2. Remove the cap from the rear wheel hub (see below).
3. Install the wheel alignment tool and the front camber and caster gauge on the wheel hub.
4. Set the front wheels to straight ahead.
5. Read the camber reading on the gauge by bringing the bubble to the center of the gauge.
Camber angle:
- Front: 0'00'±1°
- Rear: -0°30'±1°
6. If the angles are not as specified, check for bent or damaged suspension components.

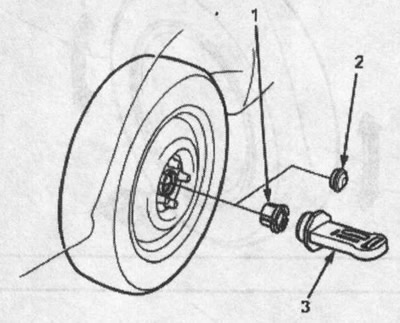

1. Wheel alignment tool, 07MGK-0010100
2. Hub cap
3. A device for measuring the angle of the camber of the front wheels and the angle of the longitudinal inclination of the axis of rotation
