Note: Check the seals and glass guide channel for damage or wear and replace if necessary.
1. Park your vehicle on a firm, level surface.
2. Remove the following components:
- Door panel of the front door, rear door.
- Plastic cover of the front door, rear door.
3. Carefully slide the glass (A) until you see the glass mounting bolts (B), then loosen them.

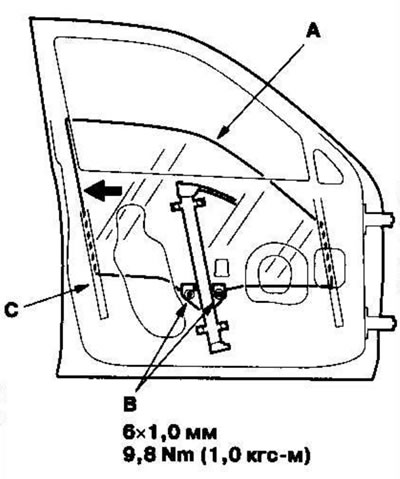

Front door:

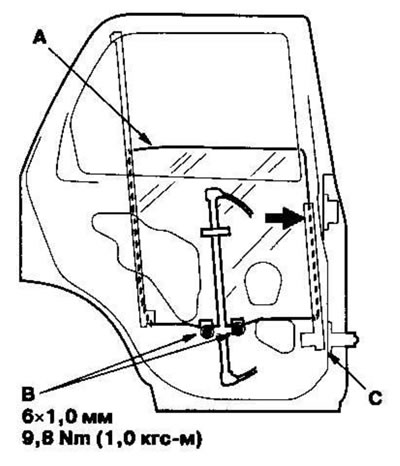

Back door:
4. Press the glass (A) against the guide (C), then tighten the glass mounting bolts.
5. Make sure the glass moves smoothly.

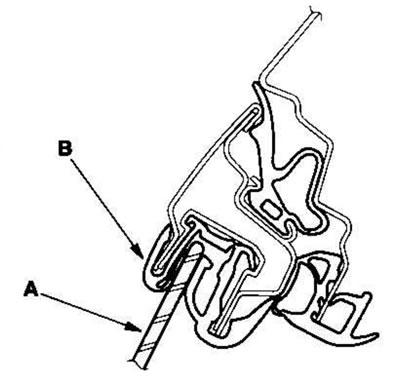

6. Raise the glass completely and check for gaps. Also make sure that the glass (A) is evenly seated against the glass guide channel (B).

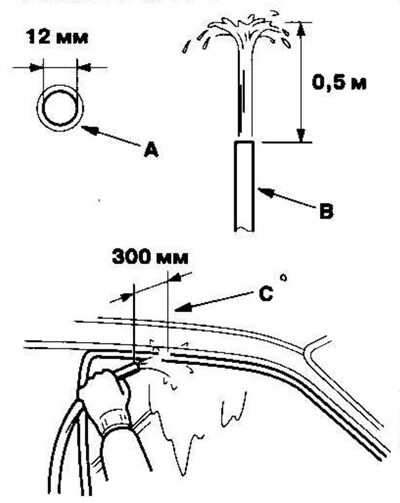

7. Check for water leakage. Pour water onto the roof and sealing area as shown in the picture on the right, keeping in mind the following:
- Use a 12mm diameter hose (A).
- Adjust the water flow as shown (B).
- Do not use attachments.
- Keep the hose 300mm away from the door (C).
8. Place the plastic covers and install the panels on the front and rear doors.
