Replacing the outer race of the tapered roller bearing of the transfer case holder (Honda CR-V 2)

Note: Apply transmission fluid to all parts during assembly.

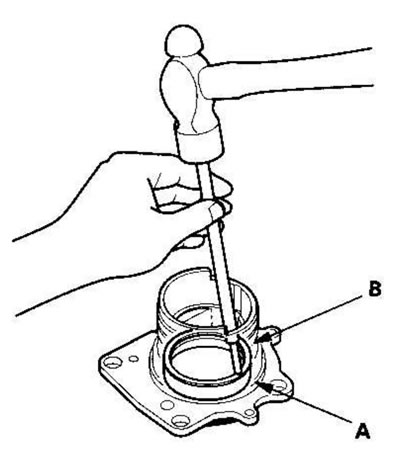

1. Press the tapered roller bearing outer race (A) and 76 mm thrust washer (B) out of the transfer case holder.

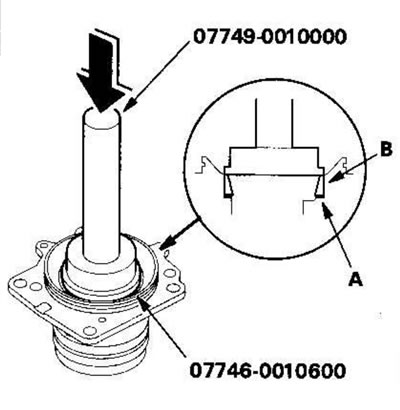

2. Press the 76mm thrust washer (A) into the transfer case holder.



3. Press in the tapered roller bearing outer ring (B) using a special tool and a press.
