Checking the condition of tires and wheels (Honda CR-V 1)

Check the condition of the tires, check for wear and damage, remove any sharp objects stuck in them; check the pressure. Check the wheel rim for corrosion, dents, cracks and other damage. Replace or repair damaged parts if necessary. Check the radial and axial runout of the wheel rim by doing the following.

1. Raise the vehicle.

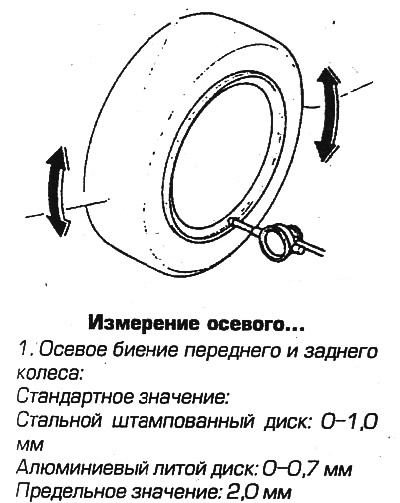

2. Measure the axial runout with a dial indicator (photo), placing it on a solid support so that the indicator leg touches the disk. If there is no indicator, the runout can be checked using a wooden pin with a smooth end, installed on a solid support.

3. Rotate the wheel and check the runout using the indicator. If a pin is used for measurements, find the point of contact of the disc and the place with the greatest deviation of the disc from the pin and measure the gap at the place of the greatest deviation. Permissible runout 2.0 mm.

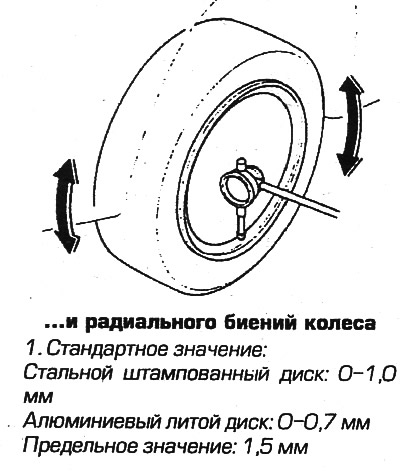

4. Check the radial runout using the indicator. If a pin is used for measurements, find the point of contact of the disk in the radial direction and the place with the greatest deviation of the disk from the pin in this direction. Measure the gap at the point of greatest deviation. Permissible radial runout 1.5 mm.

5. If the measured values exceed the norm, replace or straighten the disk.
