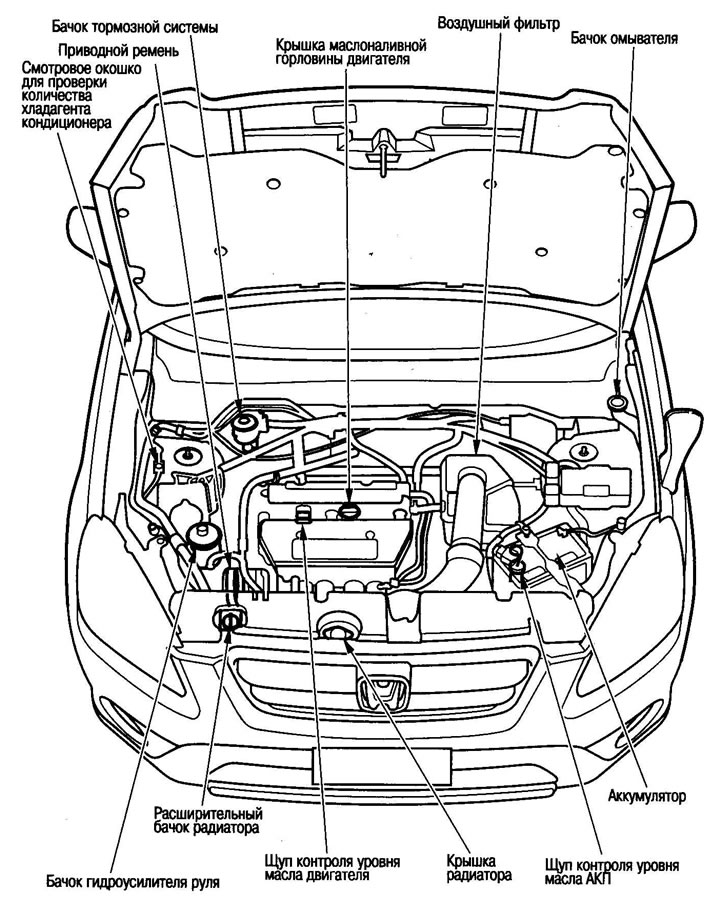

Technical data (2005 models)
| Component | Technical data | ||

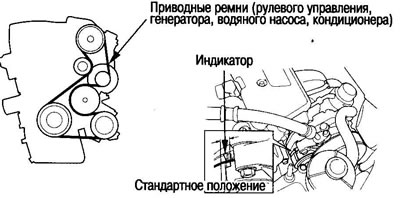

| Sag of drive belts |  | ||
| Drive belts | Automatic adjustment (indicator in standard position) | ||
| Spark plugs | Type | NGK | ZFR6K-11 |
| DENSO | KJ20DR-M11 | ||
| Spark gap | 1.0-1.1 mm | ||
| Component | Technical data | |||
| Brake pedal | Free play | 1-5 mm | ||
| Distance to the floor | Models with VSA system | 136 mm or more (under a force of approx. 20 kg) | ||
| Models without VSA system | 130 mm or more (under a force of approx. 20 kg) | |||
| Distance to the mat (reference data) | Models with VSA system | 98 mm or more (under a force of approx. 20 kg) | ||
| Models without VSA system | 92 mm or more (under a force of approx. 20 kg) | |||
| Parking brake | Number of clicks | 5-9 (under approx. force20 kg) | ||
| Air filter | Type | Wet type | ||
| Battery | Capacity/type | 36AH(5)/46B24L | ||
| Lighting lamps | Power | Headlights (low beam) | 12V-35W¹ | |
| Headlights (high beam) | 12V-55W² | |||
| Fog lights | 12V-51W² | |||
| Front side light bulb | 12V-5W | |||
| Front direction indicator/hazard warning light | 12V-21W (orange) | |||
| Side repeater turn signal/hazard warning light | 12V-5W(orange) | |||
| Rear turn signal/hazard warning light | 12V-5W (orange) | |||
| License plate light | 12V-21/5W | |||
| Brake light / rear marker lamp | 12V-21/5W | |||
| Upper brake light bulb | LED kit | |||
| Reverse light bulb | 12V-21W | |||
| Interior light | 12V-8W | |||
| Local lighting | Models with navigation system | 12V-6.2W | ||
| Models without navigation system | 12V-8W | |||
| Luggage compartment light | 12V-8W | |||
*1 - Gas discharge lamps.
*2 - Halogen lamps.
| Component | Technical data | ||
| Motor oil | Recommended oil | Honda Oil (for four-stroke engines) Ultra LEO SM (API SM/GF-4 SAE 0W-20)* Ultra LTD SM (API SM/GF-4 SAE 5W-30) Ultra GOLD SM (API SM SAE 5W-40) Ultra MILD SM (API SM/GF-4 SAE 10W-30) | |
| Filling capacity | Without filter replacement | 4 l | |
| With filter replacement | 4.2 l | ||
*0W-20 allows driving in fuel-saving mode
Recommended engine oil
It is recommended to use Honda motor oil or API SL or higher grade oil.

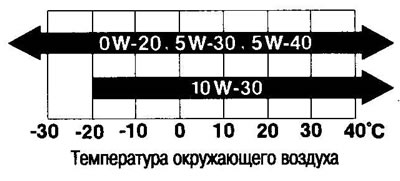

Select oil viscosity in accordance with the expected ambient temperature (see table)
| Component | Technical data | ||
| Fuel | Recommended fuel | Regular unleaded (high octane unleaded is ok) petrol | |
| Filling capacity | 58 l | ||
| Oil in automatic transmission | Recommended oil | Honda Ultra ATF-Z1 | |
| Filling capacity | 2WD models | 2.9 l | |
| 4WD models | 3.1 l | ||
| Oil in the differential (4WD models only) | Recommended oil | Honda UltraDPSF | |
| Filling capacity | 1.2 l | ||
| Coolant | Recommended coolant | Honda Ultra e-Coolant | |
| Recommended concentration | 50% | ||
| Filling capacity (including tank capacity 0.55 l) | 5.4 l | ||
| Brake fluid | Recommended liquid | Honda Ultra Brake Fluid DOT3 or DOT4 | |
| Power steering fluid | Recommended liquid | Honda Ultra Power Steering Fluid-ll | |
| Washer reservoir | Tank capacity | 2.5 l | |
