Note: Apply transmission fluid to all parts when assembling.

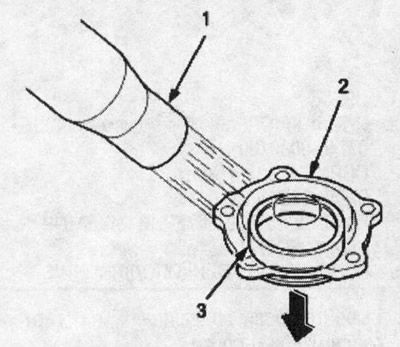

1. Press the tapered roller bearing outer race out of transfer case cover A by heating the cover to almost 100°C with a fan heater. Do not heat the lid above 100°C.
1. FAN HEATER
2. COVER A OF THE TRANSFER BOX
3. BEARING OUTER RING
2. Install a 68mm thrust shim into cover A of the transfer case.

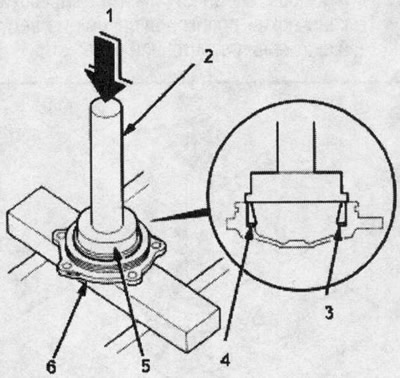

3. Using the special tool, press in the tapered roller bearing outer race.
1. PRESS
2. DRIVE HANDLE, 07749-0010000
3. SHIM, 68 mm
4. BEARING OUTER RING
5. DRIVER, 62x68 mm, 07746-0010500
6. COVER A OF TRANSFER BOX
