Checking the ignition key lock solenoid valve
1. Disconnect the ignition lock connector.
2. Insert the key into the ignition switch and turn it to the "ACC".

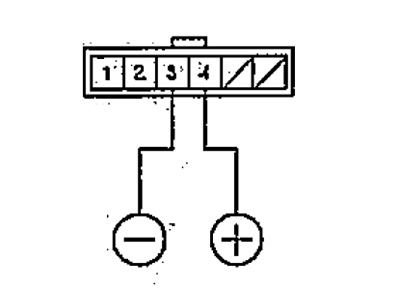

3. Connect the positive battery terminal to the terminal "4" connector of the ignition switch, and the negative terminal - to the output "3".
4. Make sure the ignition key can be turned to "LOCK" and extract.
If the key is turned to the position "LOCK" If not, replace the ignition switch.
Checking the selector lock solenoid valve
1. Remove the center console.
2. Remove the solenoid valve and disconnect its connector.
until 2003
since 2003
Table. Road test. L15A since 2003 Range "L".
L13A since 2003, with manual ratio change mode. Range "D".
() - except KM/KR.
Range "S".
() - except KM/KR.
3. Connect the positive battery terminal to the terminal "3" (L15A - to conclusion "1") solenoid valve connector, and negative - to the output "4" (L15A - to the conclusion "3").
Note: do not connect the battery terminals in reverse, this will damage the solenoid valve.
4. Verify that the solenoid valve moves out of position "P".
5. Disconnect the battery from the connector. Make sure the solenoid valve returns to position "P" and blocks the selector.
