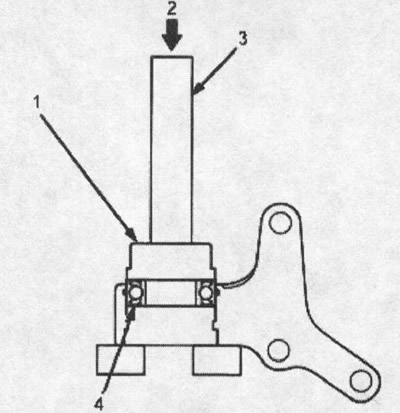

1. MARKET, 52x55 mm, 07746-0010400
2. Press in
3. MANDREL HANDLE, 07749-0010000
4. BEARING
2. Place the inner ring clamp into the groove of the bearing support.

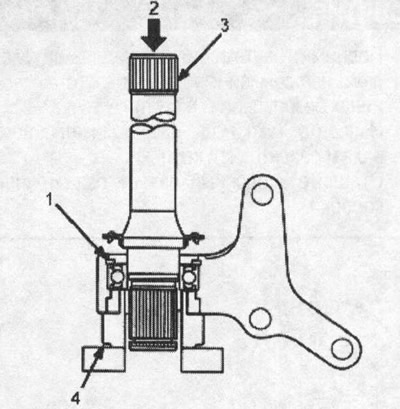

3. Using a special tool, press the intermediate shaft into the shaft bearing.
1. INTERNAL CLAMP
2. Press in
3. INTERMEDIATE SHAFT
4. MANDEL, int. diameter 35 mm, 07746-0030400
4. Place the outer ring clamp into the groove on the intermediate shaft.

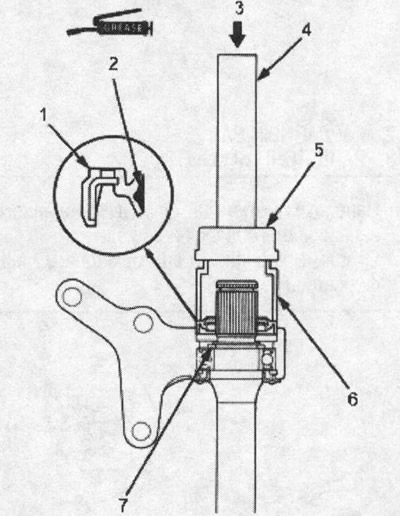

5. Using a special tool, press the outer seal into the bearing support as shown in the figure.
1. OUTER OIL SEAL. Replace
2. Pack the outer seal with grease from the inside
3. Press in
4. MANDREL HANDLE, 07749-0010000
5. MARKET, 52x55 mm, OP46-0010400
6. INNER RING MANDREL, 07LAD-PW50601
7. OUTER RING CLAMP
Note: Press the seal flush with the bearing support.
