Replacement
Note: Installation is in the reverse order of removal.
1. Pull out the parking brake lever, chock the rear wheels and jack up the front of the vehicle.
2. Disconnect the 3rd clutch fluid pressure sensor connector.

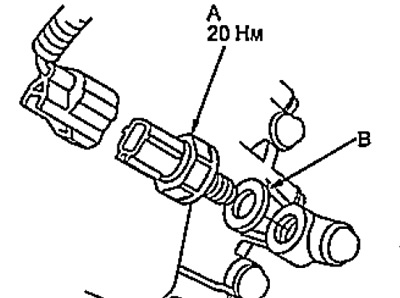

3. Remove the solenoid valve (A) and O-ring (IN) with e / m valve.
Note: when installing the solenoid valve, install a new O-ring on the solenoid valve.
- Tightening torque - 20 Nm
