Steering wheel — removal (Honda HR-V 1)

This area contains the Supplemental Restraint System (SRS) components. Review the SRS component locations, precautions, and procedures before performing repairs or maintenance.

1. Set the front wheels to the straight-ahead position, then remove the driver's airbag assembly from the steering wheel.

2. Disconnect the horn connector and the mode switch connector, if equipped.

2. Disconnect the horn connector and the mode…

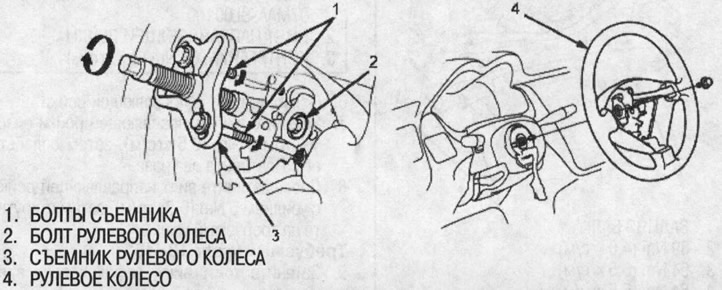

3. Loosen the steering wheel bolt, then install the steering wheel puller and remove it.

Remove the steering wheel taking into account the following:

Do not knock on the steering wheel or steering shaft.
If you screw the puller bolts into the steering wheel hub more than five thread pitches, the bolts will hit the spiral wire and damage it. To prevent this from happening, screw a pair of lock nuts onto the puller bolts at the level of the fifth thread pitch.
