ATF Cooler Hoses — Installation (Honda HR-V 1)

1. Apply transmission fluid to the joint between the tube and the ATF cooler hose.

2. Connect the hoses to the ATF cooler pipes and secure with clamps as shown in the figure.

Note: Install the clamp tabs so that they do not interfere with other components.

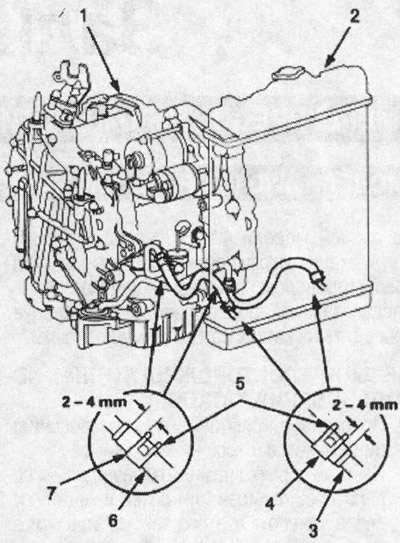

1. gearbox; 2. radiator; 3. ATF cooler pipe; 4. clamp; 5. tongue; 6. ATF cooler hose; 7. clamp

(Original material on the website Hondabook.ru)

This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian

This information has been verified: Emil Safonov
