Electric Door Locks — General Description (Honda HR-V 1)

Note: Left hand drive model shown; the layout on the right-hand drive model is similar.

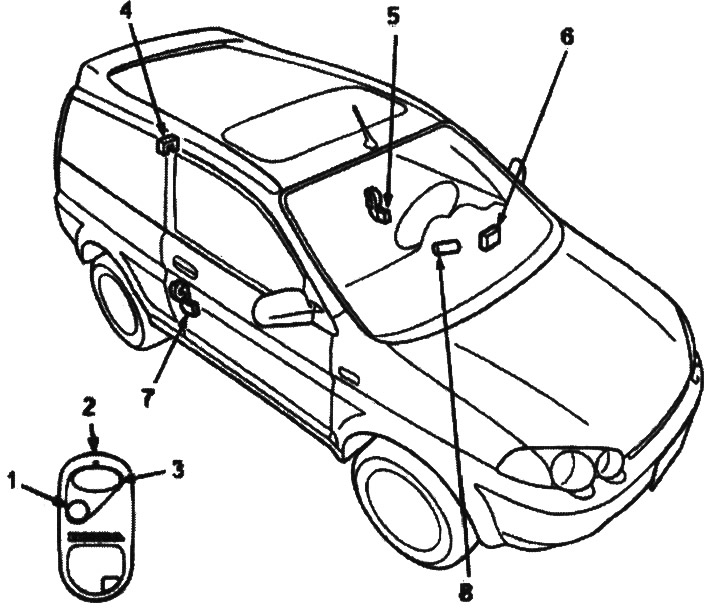

1. UNLOCK BUTTON
2. TRANSMITTER
3. LOCKING BUTTON
4. REAR DOOR LOCK DRIVE
5. DRIVER'S DOOR LOCK PUSH BUTTON SWITCH (without remote control door locking system)
5. DRIVER'S DOOR LOCK DRIVE
6. REMOTE DOOR LOCKING CONTROL UNIT
6. ELECTRIC DOOR LOCK CONTROL UNIT
7. PASSENGER DOOR LOCK DRIVE
8. IGNITION KEY
