Front seat belt buckles (Honda Fit 1)

1. Remove the front seat (see section "Removal and installation seats").

2. Remove the seat side trim (see section "Removal and installation seats").

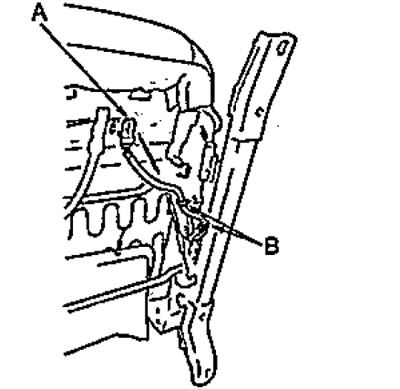

3. Disconnect the clips (B) and connector (A) from the driver's seat.

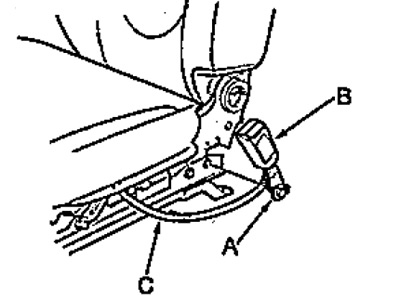

4. Loosen the bolt (A) and remove the seat belt buckle (B).

• Tightening torque - 32 Nm

5. Pull the wire (C) out through the hole in the driver's seat.

6. Installation is carried out in the reverse order of removal.
