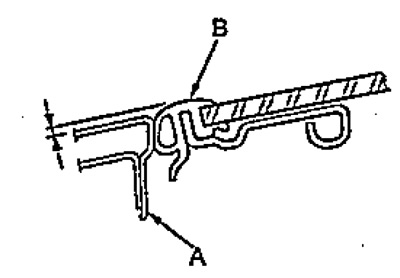

2. Measure the gap between the glass (A), the sunroof and the body (B) and compare the obtained values with those given below.
- a — 1.0-2.5 mm
3. Adjust the position of the hatch if necessary.
a) Remove the decorative covers.

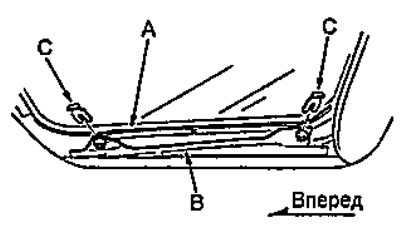

b) Loosen the screws, nuts and adjust the gaps between the base (A) and the hatch fixing mechanisms (B) using spacers (C), as shown in the figure.
c) Tighten the nuts after adjustment.
- Tightening torque - 9 Nm
4. Open the hatch slightly, then close it and check that the rear edge of the hatch glass is raised. If the excess of the glass is very large or, conversely, the glass fits very tightly to the body, then the position of the hatch glass must be adjusted.
