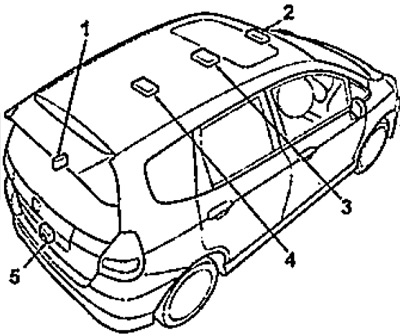

The location of the interior lighting elements.
1 - luggage compartment lighting lamp,
2 - local illumination lamp (models with sunroof and without sunroof),
3 - interior lighting lamp (models without sunroof),
4 - rear interior lighting lamp (sunroof models),
5 - limit switch in the rear door lock.
1. Checking and replacing the rear interior lighting lamp.

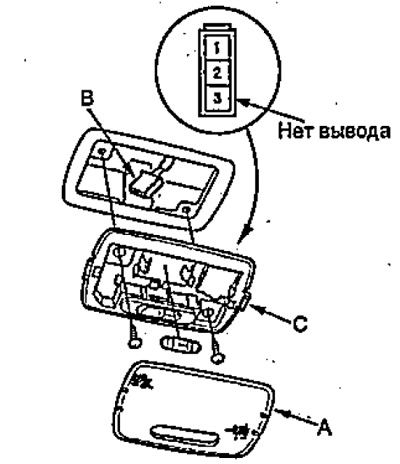

A) Set the switch to position "OFF" and remove the glass (A).
b) Remove two screws.
V) Disconnect connector "ZR" (IN) and remove the case (WITH).
G) Check the continuity between the terminals in each switch position as shown in the table "Checking the rear interior lamp.

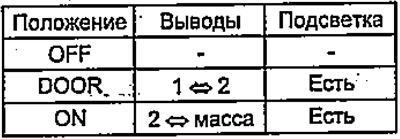

Table. Checking the rear interior lamp.
2. Checking and replacing side lights.
A) Move the side light switch to position "OFF".

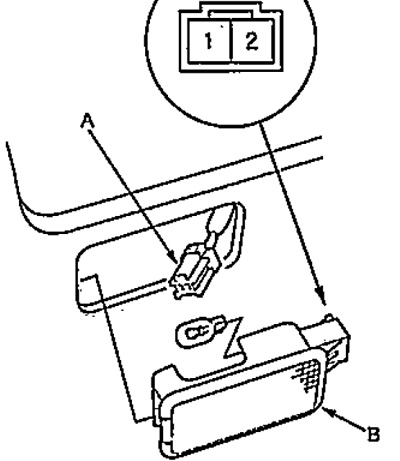

b) Disconnect connector "2R" (A) and remove the side light (IN).

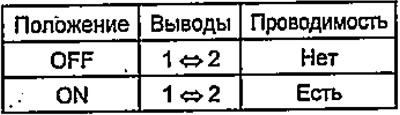

V) Check the continuity between the terminals in each switch position as shown in the table.
