Do not install components that are not reused.
Be careful not to let brake fluid come into contact with paintwork.
If the liquid does get on the paintwork, wash it off immediately with water.

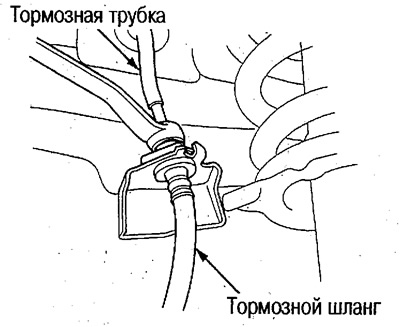

1. Disconnect the brake pipe from the brake hose.
2. Remove the clamp from the brake hose groove.
3. Disconnect the brake hose from the caliper.

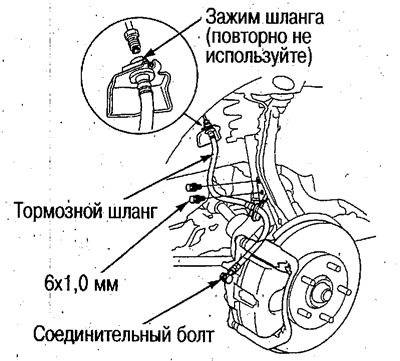

4. Loosen the mounting bolts (6 mm) of the brake hose bracket and remove the hose.
5. Install the brake hose to the knuckle using the bracket mounting bolts (6 mm).

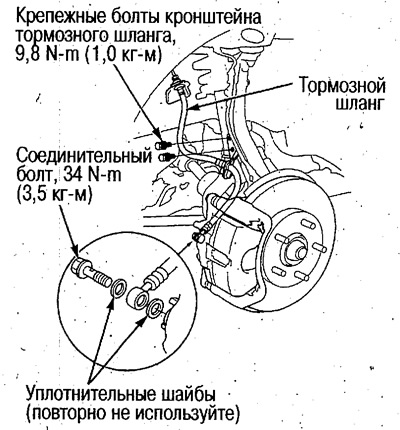

6. Connect the brake hose to the caliper using the connecting bolt and sealing washer.

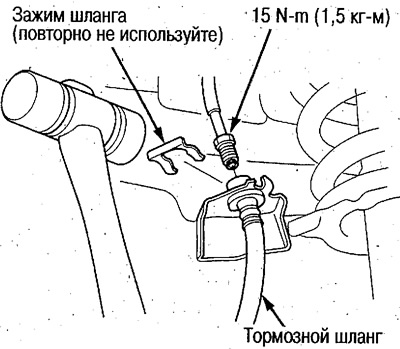

7. Secure the hose by installing the clamp into the groove of the hose.
Do not kink the brake hose.
8. Connect the brake pipe to the hose.
9. Perform the pumping (see above).
Caution: After installing the brake hose, make sure it does not touch other components, is not kinked, or leaks fluid.
