Note:
- Installation is carried out in the reverse order of removal.
- Be careful not to damage the wiring harness during assembly.
1. Disconnect the negative battery terminal and wait 3 minutes.
2. Remove the glove box.
3. Disconnect the passenger airbag connector.
4. Remove the three nuts, cover the airbag module with a cloth, bend the seven clips with a screwdriver, and remove the passenger airbag.
- Tightening torque - 9.8 Nm

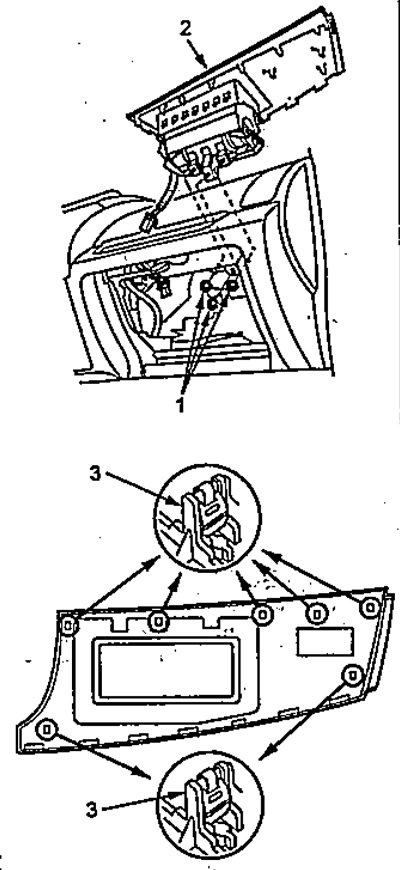

Passenger airbag.
1 - nuts,
2 - airbag module,
3 - clamps.
