2. Disconnect all connectors from the instrument cluster.

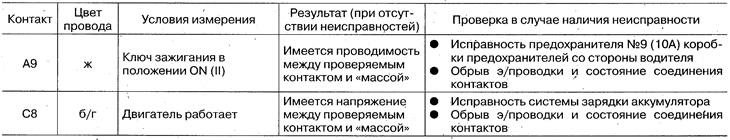

3. Check all the following input signals, if they are normal but the indicators are not working normally, then the safety indicator circuits and the printed circuit board are faulty.
Security indicator — input signal check (Honda Avancier 1)
1. Remove the instrument cluster (see above).
2. Disconnect all connectors from the instrument cluster.

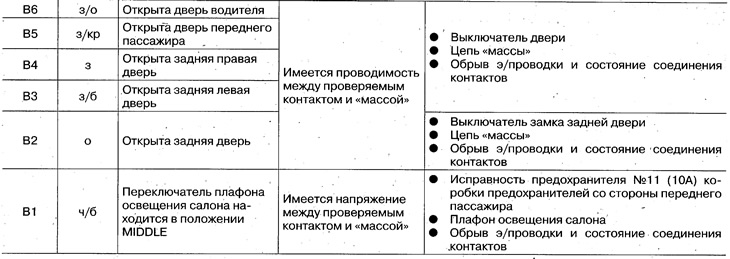

3. Check all the following input signals, if they are normal but the indicators are not working normally, then the safety indicator circuits and the printed circuit board are faulty.
2. Disconnect all connectors from the instrument cluster.
3. Check all the following input signals, if they are normal but the indicators are not working normally, then the safety indicator circuits and the printed circuit board are faulty.
This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
This information has been verified: Emil Safonov
Safety indicator — wiring diagram
Safety indicator — component location
Instrument cluster — check
Instrument cluster — removal
Instrument cluster — wiring diagram
Safety indicator — component location
Instrument cluster — check
Instrument cluster — removal
Instrument cluster — wiring diagram
Automatic transmission selector lever position indicators — component locations
Automatic transmission selector lever position indicators — wiring diagram
Automatic transmission selector lever position indicators — input signal testing
Checking the automatic transmission range switch
MPCS (Multiplex Control System) Control System
Automatic transmission selector lever position indicators — wiring diagram
Automatic transmission selector lever position indicators — input signal testing
Checking the automatic transmission range switch
MPCS (Multiplex Control System) Control System
