Attention.
- Avoid damaging the instrument panel, trim components and removable components.
- When removing the trim from the interior, do not fold or damage it.
- When using a screwdriver, protect the components with protective tape or cloth. Also, wrap the screwdriver with tape so as not to damage the components.

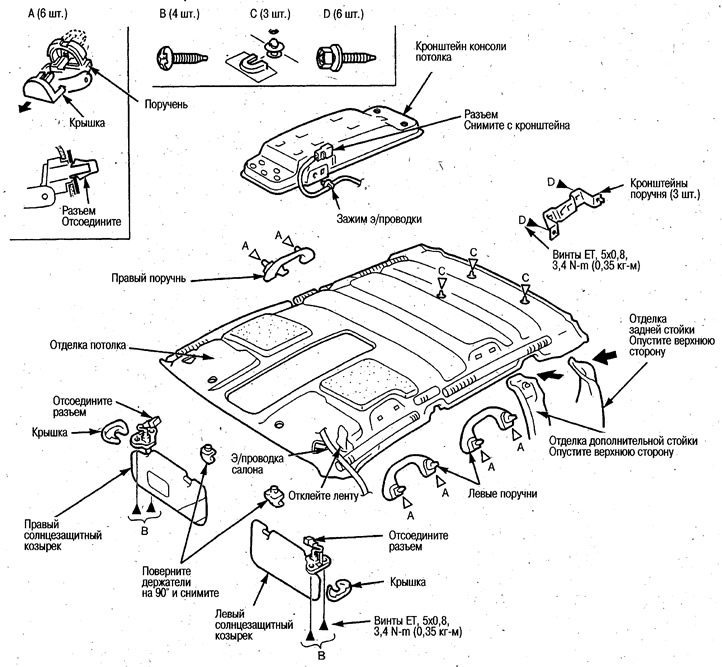

Remove the following components:
- Ceiling console.
- Upper B-pillar trims (see above):
- Front pillar trims (see above).
- Finishing of an additional stand on one side (see above).
- Trim the rear pillar on one side (see above).
Install in the reverse order of removal.
- Check the clamps for damage and replace if necessary.
- Connect the connectors securely.
- If the threads of the ET screws are stripped, install special ET screws of a larger size.
